J0011D01BNL
Manufacturer:
Pulse Electronics
Mfr.Part #:
J0011D01BNL
Datasheet:
Description:

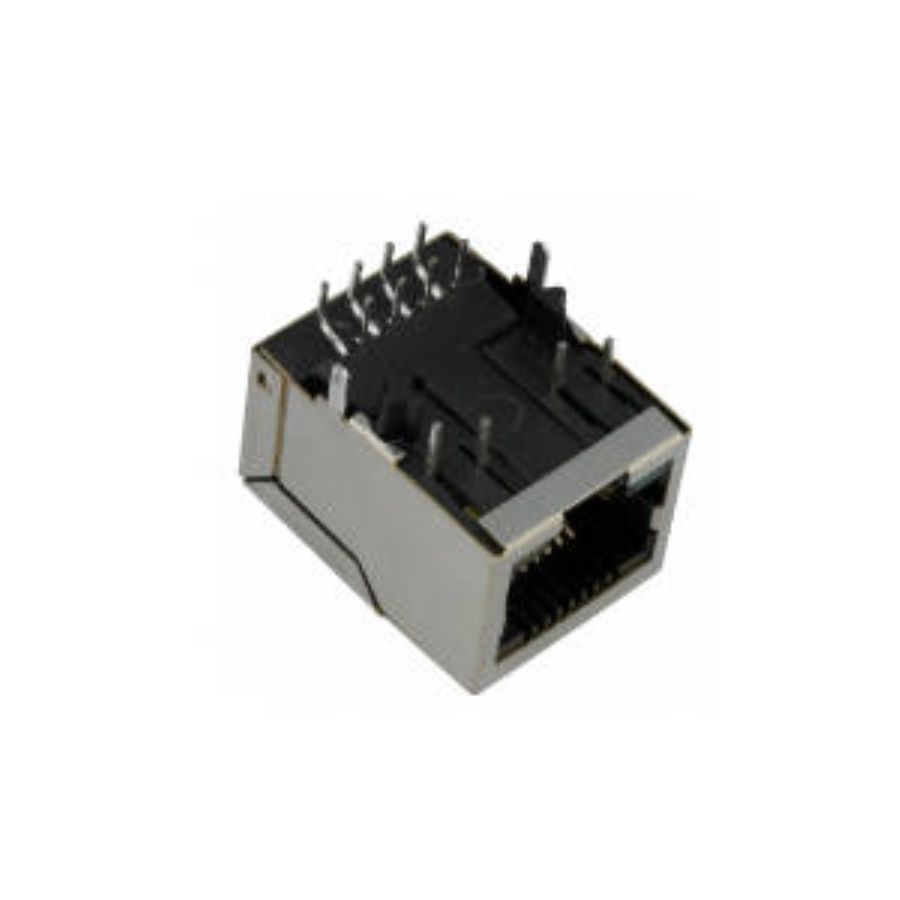

Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:8 mA
| Parameter | Value |
|---|---|
| Length | 16.26 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 8 |
| Height | 13.84 mm |
| Packaging | Tube |
| Depth | 21.59 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | J0011D01BNL |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 8 mA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Color | Green, Yellow |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | Down |
| Connector Type | RJ45 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Number of Positions Loaded | 8 |
| Number of Cores per Jack | 4 |
| Mounting Angle | Right Angle |
| Performance Category | Cat 5 |
| USOC Codes | RJ45 |
Stock: 394
Distributors
pcbx
pcbxUnit Price$3.03110
Ext.Price$3.03110
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.03110 | $3.03110 |
| 10 | $2.59824 | $25.98240 |
| 25 | $2.40881 | $60.22025 |
| 50 | $2.23319 | $111.65950 |
| 100 | $2.07037 | $207.03700 |
| 300 | $2.00588 | $601.76400 |
| 500 | $1.94340 | $971.70000 |
| 1000 | $1.88840 | $1888.40000 |
